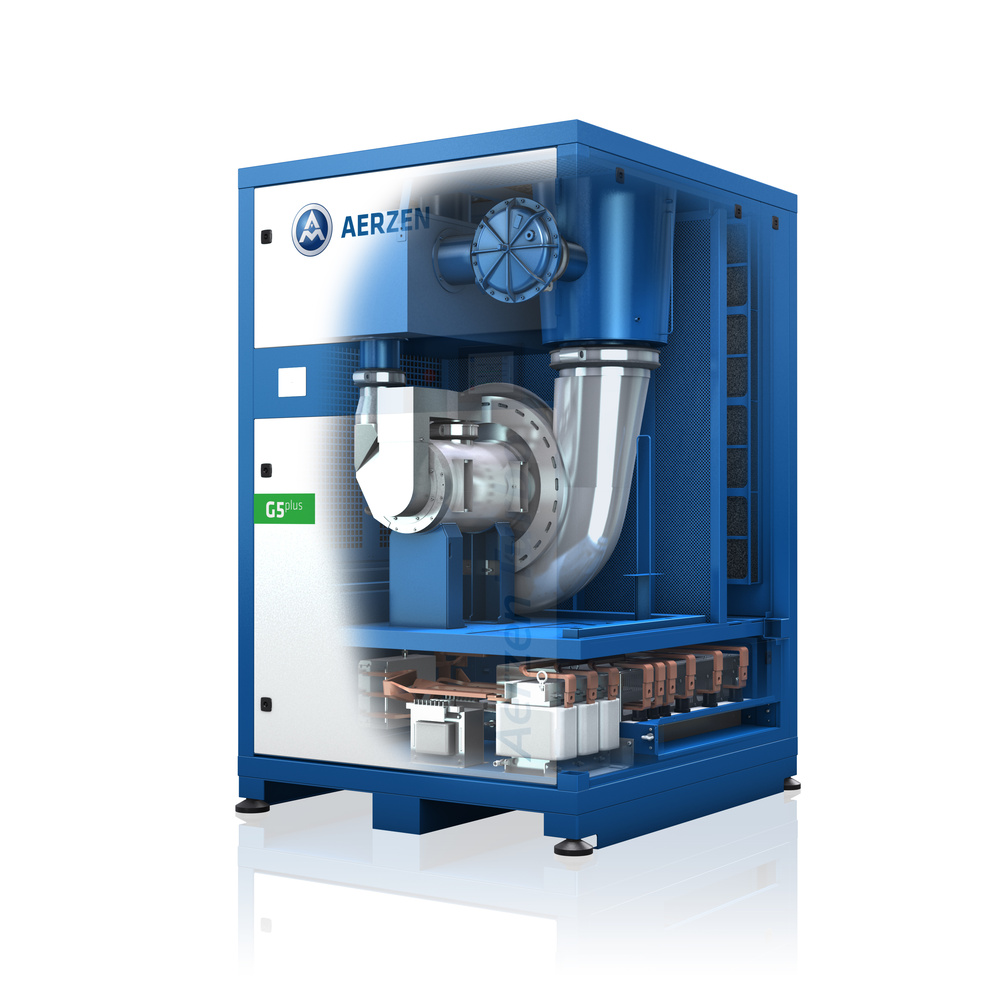

Turbosoffianti Aerzen Turbo blower Generation 5plus
More compact, more efficient, better
With the new generation Aerzen Turbo G5plus AERZEN has developed the most compact and efficient turbo in its class.

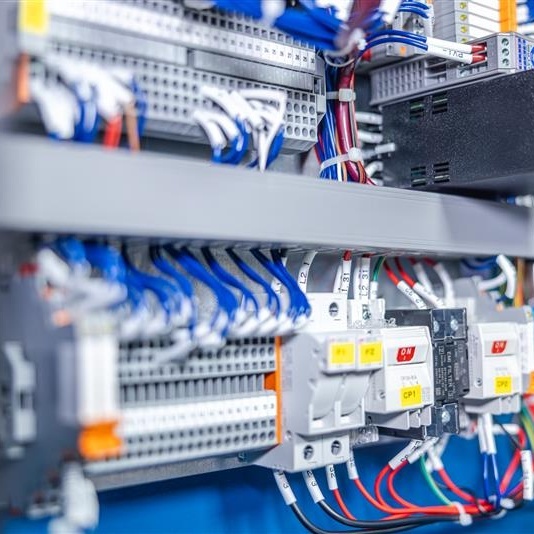

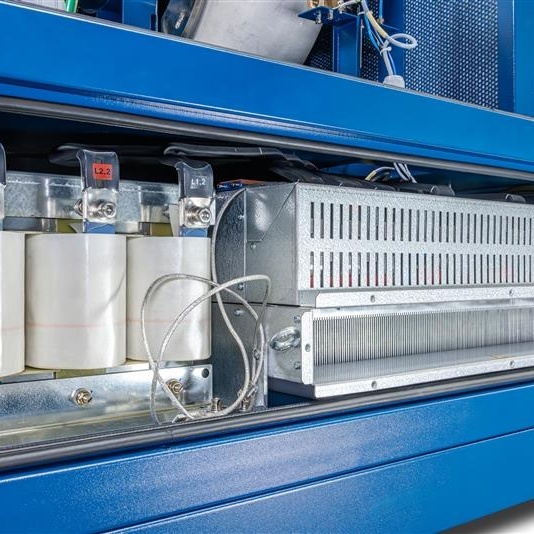

The now introduced series Aerzen Turbo G5plus lives up to its name, because it convinces through numerous advantages. The new turbos have an extremely compact design and require very little space. Further outstanding features are the innovative AERZEN air foil bearings with double coating and the new multilevel frequency converter technology (> 55 kW), which reduces the heat loss in the motor to a minimum and, consequently, improves the total efficiency significantly. A further advantage: an additional motor throttle or a sine filter, which have to be used on conventional frequency converters, is no longer necessary.
A further decisive development are the new air foil bearings with double coating consisting of Teflon and graphite. It convinces through an increased temperature resistance and lifetime of > 80,000 hours of operation independently from start and stop cycles.
Aerzen Turbo G5plus is offered for volume flows from 300 m³/h to 8,400 m³/h and for a maximum pressure of 1,000 mbar. Eight sizes from the small AT 25-0.8 G5plus to the largest model AT 200-1.0 G5plus are currently available, five more are in preparation.
The advantages at a glance
- Increase in energy efficiency by up to 10 percent compared to conventional turbo technology
- Extended bearing life thanks to innovative AERZEN air foil bearings with double coating, maximum reliability even under extreme operating conditions
- 100 percent oil-free

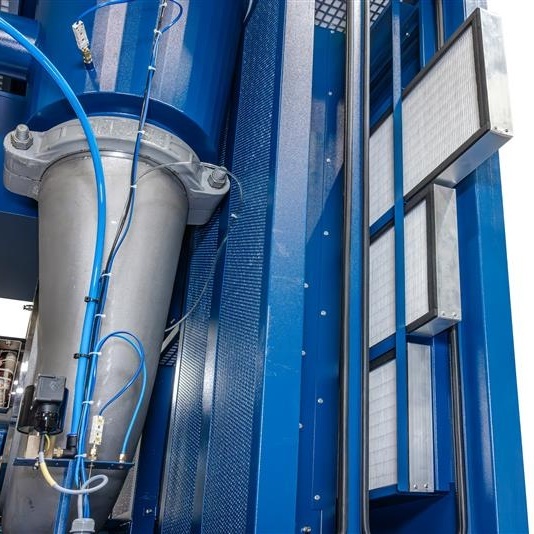

- Low maintenance effort, only regular filter change
- Extended application possibilities at ambient temperatures up to 50 °C
- Active pump protection through automatic speed increase

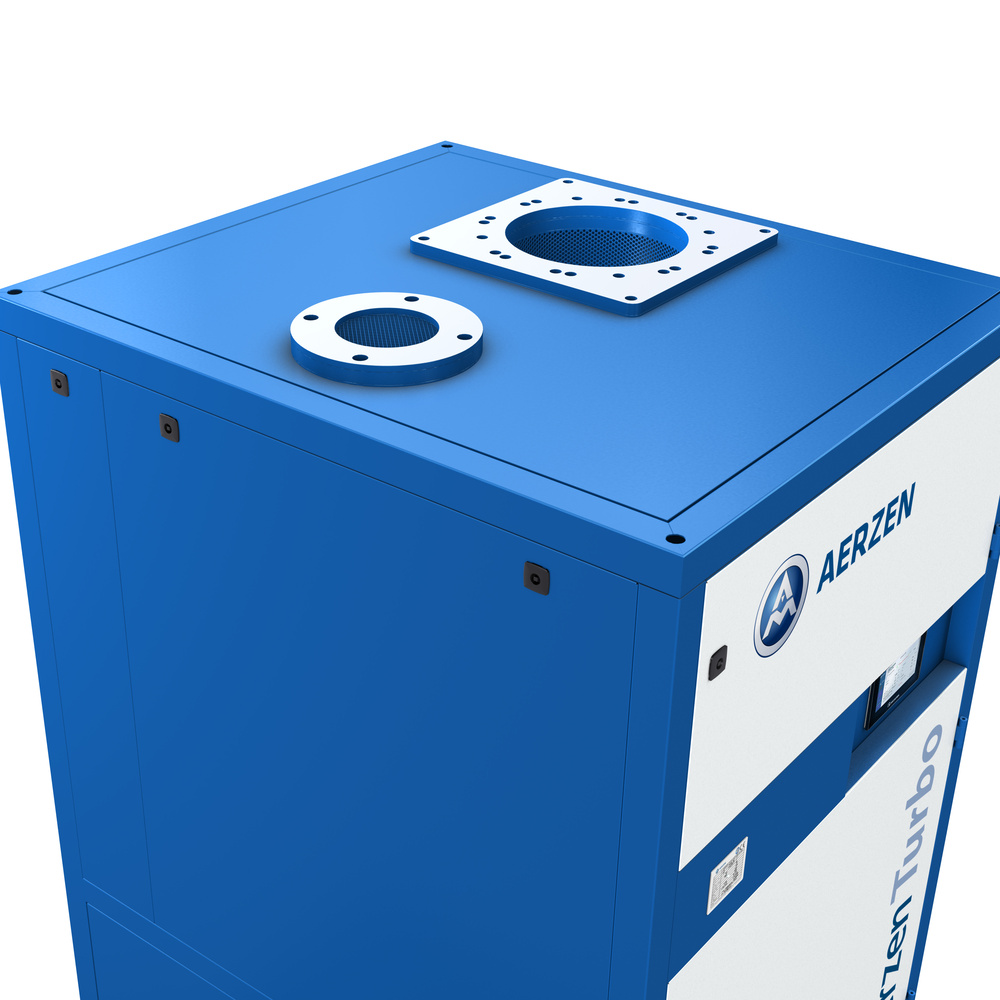

- Space-saving design
Portata:
360
-
9,400
m3/h
Pressione differenziale (Δp):
200
-
1,000
mbar
Mezzo aspirato:
Aria
Convogliamento / compressione:
oil-free
La giusta soluzione per qualsiasi applicazione
Nel 2010, AERZEN ha introdotto con successo sul mercato il suo innovativo turbo con cuscinetti ad aria. Oggi, più di 2500 installazioni in tutto il mondo ne attestano l'affidabilità superiore e i bassi costi energetici e di manutenzione.
Le turbosoffianti AERZEN sono utilizzati per un'ampia gamma di applicazioni diverse, tra cui l'apporto di ossigeno ai processi biologici degli impianti di depurazione, la fermentazione nella produzione di lieviti, la fornitura di aria di ossidazione per la produzione di calce e cemento e molte altre ancora.
US Units
No- Tecnologia
- Turbosoffianti
- funzionamento
- Pressione
- Pressione differenziale (Δp)
- 200 - 1,000 mbar
- Portata
- 360 - 9,400 m3/h
- Mezzo aspirato
- Aria
- Convogliamento / compressione
- oil-free
More compact, more efficient, better
With the new generation Aerzen Turbo G5plus AERZEN has developed the most compact and efficient turbo in its class.
The now introduced series Aerzen Turbo G5plus lives up to its name, because it convinces through numerous advantages. The new turbos have an extremely compact design and require very little space. Further outstanding features are the innovative AERZEN air foil bearings with double coating and the new multilevel frequency converter technology (> 55 kW), which reduces the heat loss in the motor to a minimum and, consequently, improves the total efficiency significantly. A further advantage: an additional motor throttle or a sine filter, which have to be used on conventional frequency converters, is no longer necessary.
A further decisive development are the new air foil bearings with double coating consisting of Teflon and graphite. It convinces through an increased temperature resistance and lifetime of > 80,000 hours of operation independently from start and stop cycles.
Aerzen Turbo G5plus is offered for volume flows from 300 m³/h to 8,400 m³/h and for a maximum pressure of 1,000 mbar. Eight sizes from the small AT 25-0.8 G5plus to the largest model AT 200-1.0 G5plus are currently available, five more are in preparation.
The advantages at a glance
- Increase in energy efficiency by up to 10 percent compared to conventional turbo technology
- Extended bearing life thanks to innovative AERZEN air foil bearings with double coating, maximum reliability even under extreme operating conditions
- 100 percent oil-free
- Low maintenance effort, only regular filter change
- Extended application possibilities at ambient temperatures up to 50 °C
- Active pump protection through automatic speed increase
- Space-saving design
There's a lot to be said about the economical Turbo. We'll make it brief here.
AERZEN has built turbo blowers since 1911. Over the years, we’ve continued to perfect these assemblies from a technological standpoint. Along the way, we’ve developed expertise that sets standards worldwide today. It’s reflected in the performance characteristics, in every component, and in all the details of the newest Turbos. Discover the new Turbo Generation 5 and Generation 5plus.
100% Turbo
- For small and large volume flows
- From 300 m³/h to 16,200 m³/h
- Speed-controled
- 100% oil-free
Efficient peak values
- Increase in energy efficiency by up to 10% compared to conventional turbo technology
- Control range of 40% - 100%
- Highly efficient individual components

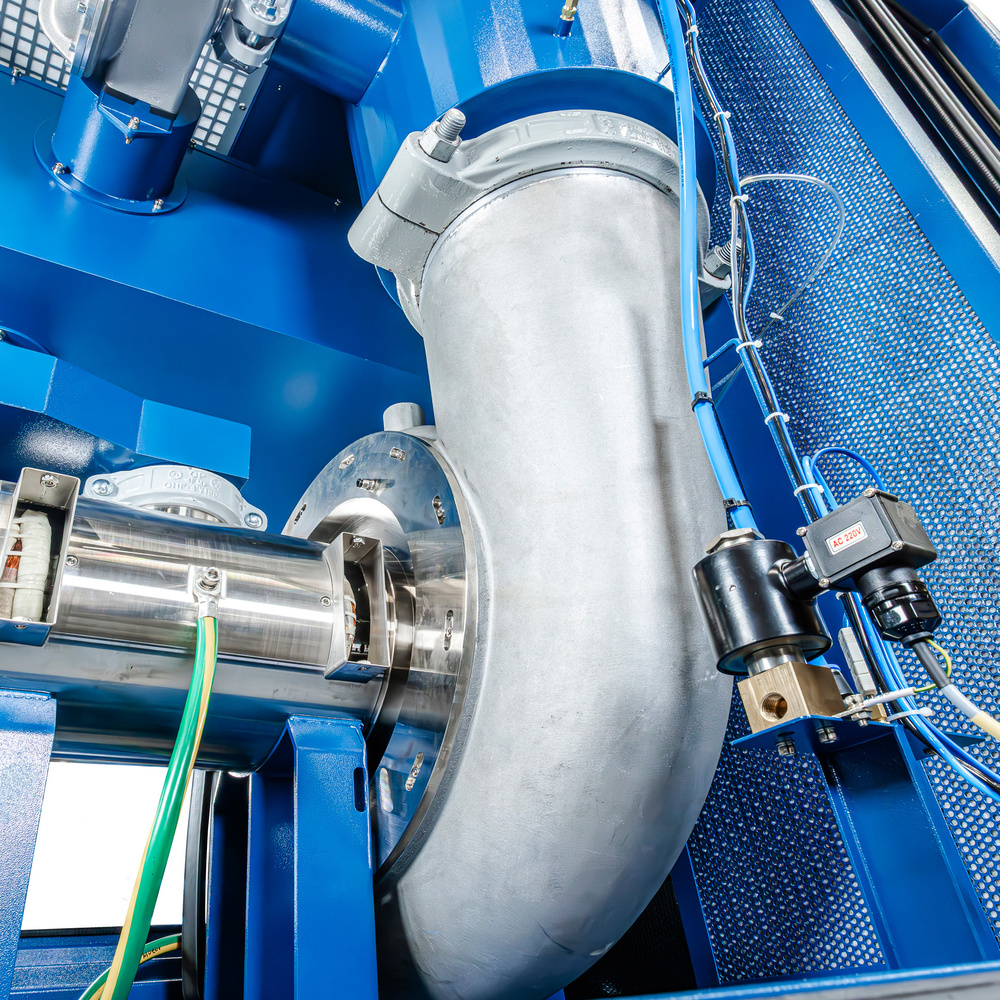

Innovation driver: the permanent magnet motor
- Extremely high-efficiency and energy-saving permanent magnet motor
- Requires no additional energy to magnetize the rotor
- Outstanding efficiency of an almost constant 96%, even in partial load operation
Innovative AERZEN air foil bearings
- Forward-looking double coating made of Teflon and graphite
- Theoretical bearing lifetime of >80,000 operating hours, regardless of stop and start cycles (>80 starts/stops per hour)
- Resistant to pressure peaks (for example, SBR processes, pulsations caused by positive displacement machines) and compressor surge
- Highly functional without necessary accessories (for example, electric control system, back up bearings, auxiliary electronics such as battery systems)
- Highly reliable operation even during voltage fluctuations and power supply failures
- 100% maintenance free
Further information are available within the product brochure
Aerzen Turbo G5plus
Le potenti turbosoffianti della serie Aerzen Turbo sono particolarmente adatte all'impiego in impianti di trattamento delle acque reflue municipali o industriali e coprono, con i loro 21 modelli, una gamma di portate da 300 m³/h a 16.200 m³/h e pressioni di sistema fino a 1.000 mbar.
Aerzen Turbo blower Generation 5plus — Prestazioni & dimensioni
| Serie | Dati di prestazione | Dimensioni e peso | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Differenza pressione, mbar | Portata*, m3/h | Potenza motore, kw | Pressione suono, max. db(A) | Larghezza (W), mm | Profondità (D), mm | Altezza (H), mm | Dimensione nominale | Peso, kg | |
| AT 25-0.8 G5plus | 800 | 900 | 25 | 72 | 800 | 1,040 | 1,500 | DN 100 | 520 |
| AT 35-0.8 S G5plus | 800 | 1,200 | 33 | 72 | 800 | 1,040 | 1,500 | DN 100 | 550 |
| AT 50-0.6 G5plus | 600 | 2,700 | 40 | 72 | 800 | 1,040 | 1,500 | DN 150 | 750 |
| AT 50-0.8 G5plus | 800 | 1,900 | 45 | 72 | 800 | 1,040 | 1,500 | DN 150 | 550 |
| AT 60-0.9 S G5plus | 900 | 2,650 | 50 | 73 | 800 | 1,040 | 1,500 | DN 150 | 600 |
| AT 75-0.6 G5plus | 600 | 3,900 | 65 | 73 | 900 | 1,140 | 1,600 | DN 200 | 750 |
| AT 75-0.8 G5plus | 800 | 2,900 | 65 | 73 | 900 | 1,140 | 1,600 | DN 200 | 750 |
| AT 100-0.6 G5plus | 600 | 5,100 | 85 | 73 | 900 | 1,140 | 1,600 | DN 250 | 750 |
| AT 100-0.8 G5plus | 800 | 3,900 | 85 | 73 | 900 | 1,140 | 1,600 | DN 200 | 750 |
| AT 100-1.0 G5plus | 1,000 | 3,000 | 85 | 73 | 900 | 1,140 | 1,600 | DN 200 | 750 |
| AT 150-0.6 S G5plus | 600 | 7,800 | 120 | 73 | 1,000 | 1,300 | 1,900 | DN 250 | 870 |
| AT 150-0.8 G5plus | 800 | 5,400 | 120 | 73 | 1,000 | 1,300 | 1,900 | DN 250 | 870 |
| AT 150-1.0 G5plus | 1,000 | 4,800 | 130 | 73 | 1,000 | 1,300 | 1,850 | DN 250 | 870 |
| AT 200-0.8 S G5plus | 800 | 8,400 | 165 | 73 | 1,000 | 1,300 | 1,850 | DN 250 | 870 |
| AT 200-1.0 G5plus | 1,000 | 6,000 | 165 | 73 | 1,000 | 1,300 | 1,850 | DN 250 | 870 |
| AT 250-0.9 S G5plus | 900 | 9,400 | 160 | 76 | 1,000 | 1,300 | 1,850 | DN 250 | 870 |
Rumorosit‡ con Cabina, senza silenziatore esterno.
* corrisponde al flusso del volume di consegna misurato convertito nelle condizioni di aspirazione specifiche del cliente p = 1,0 bar , t =20°C, rF = 0%
