Screw Compressors Screw Compressor

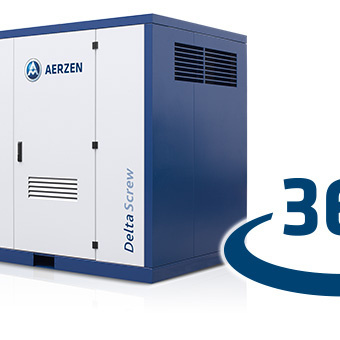

Delta Screw E-Compressor with direct drive

When it comes to versatility, the compressors in the Delta Screw series exceed all expectations. The truth is that AERZEN’s flexible and highly efficient units offer the widest variety of models available today. The largest number of possible modifications. And the broadest range of accessories. In other words: the right compressor for all process requirements.

Volume flow:
350 to 15.000 m3/h

Differential pressure (Δp):
-850 to 3.500 mbar

Medium:
Air, Neutral Gases, Aggressive Gases

Compression:
Oil-free

The advantages of AERZEN Direct Driven Screw Compressors at a glance:

  • Uniquely broad range of applications
  • Highly efficient
  • Low life-cycle costs
  • Extremely durable and robust
  • Low maintenance needs
  • 100% free of absorption material

Contact us

Countless processes.

Not a single compromise.

When it comes to versatility, the compressors in the Delta Screw series exceed all expectations. The truth is that AERZEN’s flexible and highly efficient units offer the widest variety of models available today. The largest number of possible modifications. And the broadest range of accessories. In other words: the right compressor for all process requirements. Right-sized. No compromises.

Applications

  • Conveyance and compression of neutral and special gas types
  • Pneumatic transport (using air or nitrogen) of powder, pellets, ashes, etc.
  • Homogenisation, loading, and unloading of cement, lime, etc.
  • Vacuum generation for the production of glass containers
  • Gas/air mixing systems
  • Flue gas desulfurisation and oxidation air for power plants
  • Truck transport applications (e.g. stationary unloading, combined vacuum/pressure operations)
  • Blast air for nonwoven fabric manufacture
  • Fermentation
  • Instrument-grade air
  • Booster applications

Industries

  • Chemical and petrochemical industries
  • Cement industry
  • Food and beverage industries
  • Power plant technology
  • Glass industry
  • Paper industry
  • Plastics industry
  • Steel and iron industries
  • Textile industry
  • Pharmaceutical and cosmetics industries
  • Medical technology
  • Mining and smelting technology
  • Electronics industry, solar technology
  • Oil and gas industries
  • Biogas

US Units

No
Type of technology
Screw Compressors
Design
Positive pressure , Negative pressure
Differential pressure (Δp)
-850 to 3.500 mbar
Volume flow
350 to 15.000 m3/h
Medium
Air, Neutral Gases, Aggressive Gases
Compression
Oil-free

Suitable for dry and clean compression of air and neutral gases.

A single series for all volume flows.

They are among the world’s best-selling compressors: the direct-drive units that bear the name Delta Screw. Why? Because there is probably no other compressor that so uncompromisingly fulfils even the most demanding client requirements. Because you can cover a very broad range of volume flows with a single machine. Because these compressors are most efficient. Because they are legendary for their operational availability and longevity. And finally, because these amazing all-rounders have a huge advantage: they are “Made by AERZEN”.

11 Models. All contingencies.

They operate reliably in all the world’s temperature zones, indoors and out, in mobile or stationary deployment. What makes the Delta Screw so flexible? 11 direct-drive machines. 2 compressor groups with the specialised AERZEN rotor profile. A choice of discharge port sizes in the cylinder for ideal internal compression. And an almost unlimited spectrum of possible adaptations and accessories. Designed for the compression of air, nitrogen, and other neutral gases, the Delta Screw compressors are perfect for almost any possible application. The spectrum of the extended Delta Screw series additionally includes 7 belt-driven compressor models for volume flows (actual delivery depends on intake parameters) from 120m³/h to 2,650m³/h.

Delta screw E-compressors. The savings will pay for the machine.

6% lower energy usage compared to conventional compressors – the AERZEN E-class (VML 60 G5-E, VML 95 G5-E, VM 45 G5-E, VM 75 G5-E, VM 100 G5-E) is making a significant contribution to the realisation of legal and company energy savings programs. And with almost 90% of total costs taken up by energy, this means releasing serious potential that can be devoted to environmental protection, improved company liquidity, and reduced life-cycle costs.

5 x E. Discover the Delta Screw success principle.

Efficiency. Essentials. Ecology. Elasticity. Evolution:

AERZEN’s guiding principle for success is compressed into the 5 big “E”s. It’s expressed in a number of intelligent details – and in a well thought out generation of compressors: the Delta Screw E-Compressor.

Efficiency

Lower TCO

  • Up to 6% energy savings
  • Low maintenance costs
  • Flexible on-site service

Cool external supply air (E-Compressor)

  • Compressor air intake from outside the acoustic hood
  • Up to 10°C lower intake temperature
  • Separate intakes for process and cooling air

Essentials

Just plug & play

  • Completely pre-installed unit (all-in)
  • Ready to run
  • Includes initial Delta Lube 06 oil supply

Easy to use & simplified maintenance requirements

  • Intelligent AERtronic controls
  • Extensive interfaces for communicating with the process monitoring system
  • Safe, rapid access to service components

Elasticity

AERZEN low pressure profiles

  • Profile optimisation for significant energy savings
  • Two profiles: 3+4 (for VML compressors) and 4+6 (for VM compressors)

Uniquely flexible.

  • Out in front: the largest volume flows in a single machine
  • A broad range of applications with a flow range of 20% to 100%

Evolution

Customized solutions

  • Compressor, accessories and documentation in accordance with client requirements

Authorisation for use in compliance with current legal requirements

  • Pressure Equipment Directive 2006/42/EG, or any preferred local certification for use around the world

ATEX-certified

  • Machine designs conform to ATEX Product Guideline 2014/34/EU

Ecology

Oil-free in accordance with Class 0

  • Integrated vacuum generator to guarantee oil-free conditions
  • 100% oil-free in accordance with ISO 8573-1, TÜV-certified

Intelligently lowered noise levels

  • Innovative, multifunctional acoustic hood design to keep machine noise low
  • Breakthrough 3-chamber reactive silencer, free of absorption materials
    (European patent: 1857682)

Screw Compressor
Delta Screw E-Compressor with direct drive
— Performances & dimensions

Negative pressure
Series Performance data Dimensions and weights
Pressure difference, mbar Volume flow*, m3/h Motor power, kw Sound pressure, max. db(A) Width (W), mm Depth (D), mm Height (H), mm Nominal size Weight, kg
VML 35 G5-E -850 1.710 160 73 2.900 1.450 1.900 DN 150 2.000
VML 60 G5-E -850 3.690 250 79 3.200 1.650 2.200 DN 200 3.100
VML 95 G5-E -850 6.000 355 79 4.100 1.780 2.375 DN 250 4.400
VML 150 -850 8.220 560 84 5.300 2.300 2.500 DN 300 9.000
VML 250 -850 12.000 800 84 5.500 2.600 3.000 DN 400 11.600

Sound pressure level without blow-off noise, with acoustic enclosure.
* corresponds to the measured delivery volume flow converted to the customer-specific suction conditions p = 1,0 bar, t =20°C, rF = 0%

Positive pressure
Series Performance data Dimensions and weights
Pressure difference, mbar Volume flow*, m3/h Motor power, kw Sound pressure, max. db(A) Width (W), mm Depth (D), mm Height (H), mm Nominal size Weight, kg
VM 30 G5-E 3.500 2.040 160 74 2.900 1.450 1.900 DN 150 1.950
VML 35 G5-E 2.000 2.600 160 73 2.900 1.450 1.900 DN 150 2.000
VM 45 G5-E 3.500 3.250 250 75 3.200 1.650 2.200 DN 150 3.000
VML 60 G5-E 2.000 4.550 250 79 3.200 1.650 2.200 DN 200 3.100
VM 75 G5-E 3.500 4.780 400 76 4.100 1.780 2.375 DN 200 4.300
VM 85 3.500 6.760 560 82 4.500 1.800 2.320 DN 200 6.000
VML 95 G5-E 2.000 7.000 355 79 4.100 1.780 2.375 DN 250 4.400
VM 100 G5-E 3.500 7.620 630 87 5.400 2.240 2.466 DN 250 7.000
VM 140 3.500 10.700 800 83 5.250 2.200 2.870 DN 250 8.500
VML 150 2.000 10.630 560 84 5.300 2.300 2.500 DN 300 9.000
VML 250 2.000 15.000 800 83 5.500 2.600 3.000 DN 400 11.600

Sound pressure level without blow-off noise, with acoustic enclosure.
* corresponds to the measured delivery volume flow converted to the customer-specific suction conditions p = 1,0 bar, t =20°C, rF = 0%
