Screw Blowers
Screw Blower
Delta Hybrid
Delta Hybrid is the perfect synthesis of positive displacement blower and screw compressor. Unlike the conventional positive displacement blower (max. 1,000 mbar), the innovative screw blower uses a new and unique 3+4 compressor profile, which is specially designed for low pressure applications up to 1,500 mbar.
Delta Hybrid thus closes the gap in the previous machine mix and offers a wide range of services for precise design to meet the most diverse process requirements. The result is a new level of cost efficiency for compressed air applications.
Volume flow:
58,86
to
5,297,4
CFM
Differential pressure (Δp):
4,35
to
21,76
psi
Medium:
Air
Conveying / Compression:
Oil-free
The advantages of AERZEN Screw Blowers at a glance:
- Highest energy efficiency
- Reduced life cycle costs
- Belt drive: the best mix for efficiency, precise design, flexibility and maintenance
- High reliability and durability also under extreme conditions
- Largest volume flow control range
- Reduced maintenance
US Units
Yes- Type of technology
- Screw Blowers
- Design
- Positive pressure
- Differential pressure (Δp)
- 4,35 to 21,76 psi
- Volume flow
- 58,86 to 5,297,4 CFM
- Medium
- Air
- Conveying / Compression
- Oil-free

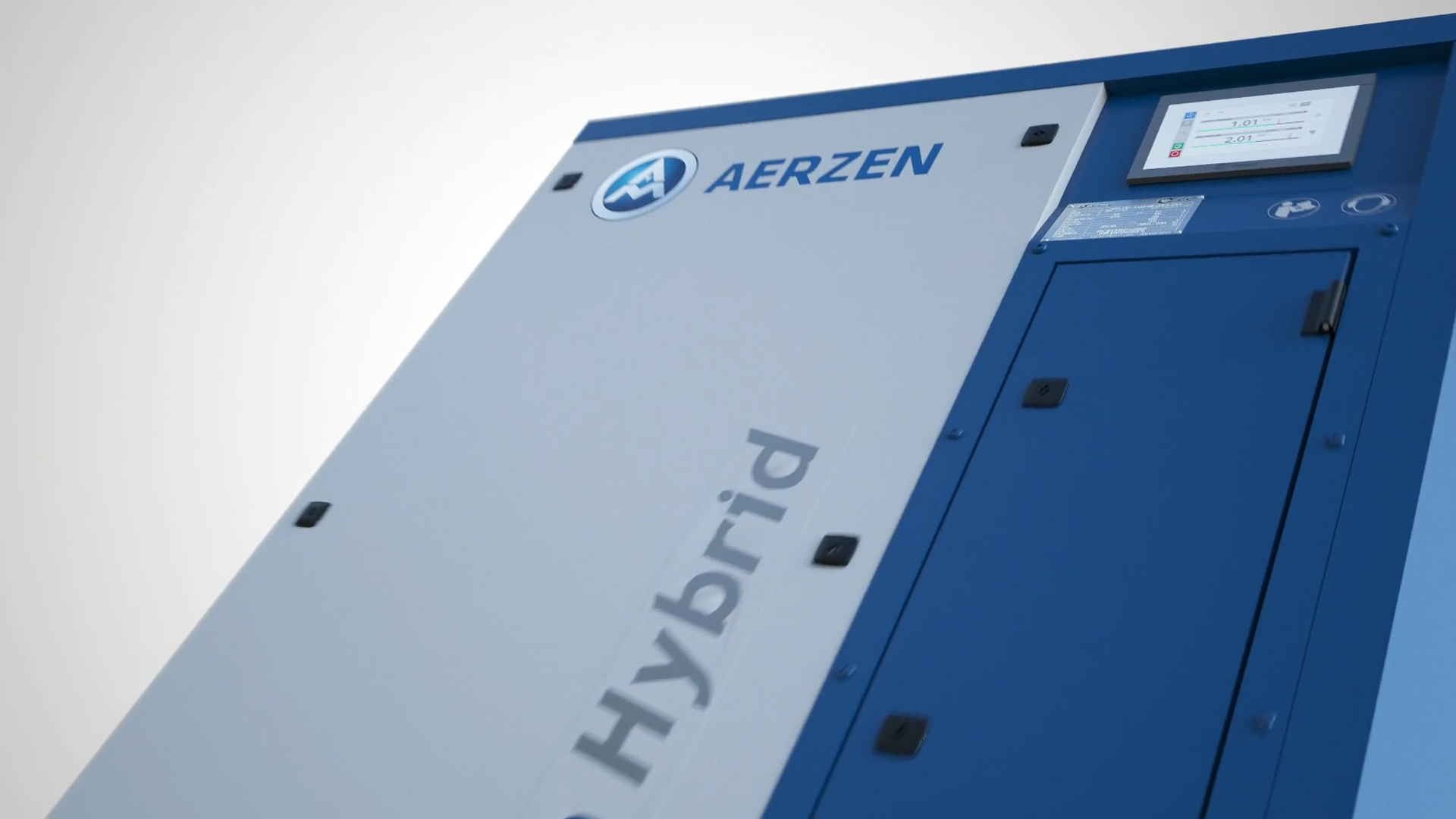

The Delta Hybrid screw blowers
The Delta Hybrid Screw Compressor derives from the fusion between the screw compressor technologies and the rotary lobe blowers. This combination results in a machine that combines the technical advantages of the two concepts, offering new possibilities for generating positive pressure.
Roughly 90% of a compressor’s life cycle costs are consumed by energy. While this presents a huge challenge, AERZEN’s Delta Hybrid is providing companies with ideal solutions that enable large energy savings thanks to its compressor’s energy efficiency, even in high-pressure ranges.
Get the Delta Hybrid screw blower and enjoy benefits such as:
- Reduced life-cycle costs
- Extraordinary energy efficiency
- High reliability levels
- Reduced maintenance needs
- Increased range of pressures and applications
- 100% pure process air, free of absorption materials and oil
There is no more comfortable way to generate pressure.
Significative energy savings, easy installation and commissioning, minimum maintenance: these characteristics are also directly reflected into the cost balance. A good reason for AERZEN to keep a special eye on them during the development of the Delta Hybrid Generation. The results convince even the smartest customers.
Extraordinary energy efficiency
- New and unique 3+4 rotor profile
- Energy savings up to 30% compared to lobe blowers
- Extended turndown ratio up to 1:5
- Optimized air flow within the acoustic hood
- Belt drive to match exactly the process requirements
Extremely compact design
- Space-saving side-by-side installation
- Smaller dimensioning of machine rooms
- Easy access for service and maintenance work
- Integrated power suppy panel having the same footprint
Reliability and durability
- Patented bearing, theoretical lifetime of more than 70,000 hours (at 1.000 mbar pressure difference)
- Patented driving- and conveying chamber sealings
- 100% oil-free per Class 0 (certified per ISO 8573-1)
- Patented silencer w/o absorption material
Further information is available within the product brochures.
New Delta Hybrid sizes D13S, D17S, D25S and D30S
Delta Hybrid is among the most innovative solutions in compressor technology - and by far among the most efficient assemblies in its class. Now AERZEN has taken its globally successful screw blowers to the next technology level. The new types impress with smart features, further improved functionality and enormous energy savings of up to 30 % compared to a conventional positive displacement blower.
Screw Blower
Delta Hybrid
—
Performances & dimensions
| Series | Performance data | Dimensions and weights | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Pressure difference, psi | Volume flow*, CFM | Motor power, hp | Sound pressure, max. db(A) | Width (W), in | Depth (D), in | Height (H), in | Nominal size | Weight, lb | |
| D 12 H | 21,76 | 394,362 | 49,6 | 73 | 49 | 53 | 59 | DN 100 | 1,301 |
| D 12 S | 14,5 | 406,134 | 40,2 | 72 | 49 | 53 | 59 | DN 100 | 1,301 |
| D 13 S | 14,5 | 456,165 | 40,2 | 72 | 49 | 53 | 59 | DN 100 | 1,124 |
| D 17 S | 14,5 | 594,486 | 49,6 | 73 | 49 | 53 | 59 | DN 125 | 1,146 |
| D 24 H | 21,76 | 806,382 | 100,6 | 76 | 49 | 53 | 59 | DN 125 | 1,4 |
| D 24 S | 14,5 | 818,154 | 73,8 | 74 | 49 | 53 | 59 | DN 125 | 1,4 |
| D 25 S | 14,5 | 847,584 | 60,3 | 74 | 49 | 53 | 59 | DN 125 | 1,389 |
| D 30 S | 14,5 | 1,047,708 | 73,8 | 75 | 49 | 53 | 59 | DN150 | 1,411 |
| D 36 H | 21,76 | 1,118,34 | 147,5 | 76 | 59 | 71 | 78 | DN 150 | 2,421 |
| D 36 S | 14,5 | 1,265,49 | 100,6 | 76 | 59 | 71 | 78 | DN 150 | 2,421 |
| D 52 S | 14,5 | 1,836,432 | 147,5 | 77 | 59 | 71 | 78 | DN 150 | 2,877 |
| D 62 H | 21,76 | 2,001,24 | 214,6 | 81 | 67 | 81 | 83 | DN 200 | 3,086 |
| D 62 S | 14,5 | 2,060,1 | 147,5 | 79 | 67 | 81 | 83 | DN 200 | 3,086 |
| D 76 H | 21,76 | 2,613,384 | 214,6 | 79 | 67 | 81 | 83 | DN 200 | 4,405 |
| D 76 S | 14,5 | 2,678,13 | 214,6 | 77 | 67 | 81 | 83 | DN 200 | 2 |
| D 98 H | 21,76 | 3,296,16 | 335,3 | 81 | 75 | 87 | 92 | DN 250 | 7,275 |
| D 98 S | 14,5 | 3,413,88 | 268,2 | 79 | 75 | 87 | 92 | DN 250 | 7,275 |
| D 152 H | 21,76 | 5,120,82 | 536,4 | 81 | 83 | 112 | 92 | DN 300 | 8,929 |
| D 152 S | 14,5 | 5,238,54 | 422,4 | 80 | 83 | 112 | 92 | DN 300 | 8,929 |
Sound pressure level without blow-off noise, with acoustic enclosure.
* corresponds to the measured delivery volume flow converted to the customer-specific suction conditions p = 1,0 bar, t =20°C, rF = 0%
